Rated Power 18kw Cableway Pulling Machine Equipment , 50 KN Cable Pulling Tools Equipment

Name: Rated Power 18kw Cableway Pulling Machine Equipment 50 KN Cable Pulling Tools Equipment
Brand: GALAXY
Price: 1 USD

China Rated Power 18kw Cableway Pulling Machine Equipment , 50 KN Cable Pulling Tools Equipment wholesale

Brand Name : GALAXY

Model Number : GSDJ

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 30 days

Packaging Details : bulk

Type : Cableway Puller

Rope speed : 16 meter/min

Pull force : 50 KN

Rated power : 18 kw

Rated speed : 2300 round/min

Flow : <374 g/(kg*h)

Contact Now

Underground Cable Pulling Equipment Rated Power 18kw Cableway Puller For Overhead Line Equipment

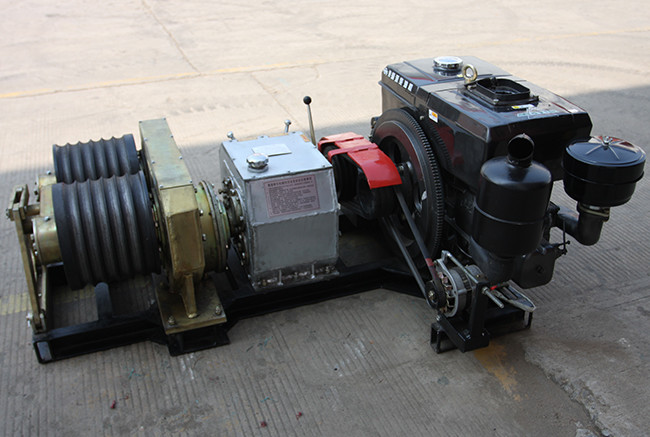

Cableway puller GSDJ is a kind of engineering machinery specially designed to the requirements of the cableway transportation construction.
It is a kind of ideal puller equipment for freight aero tramway in the wild mountain with no power.

Performance

Model	Gear		Rope speed	Pull force	Rated power	Rated speed	Flow	Direction of Rotation
			meter/min	KN	kw	round/min	g/(kg*h)
GSDJ-50	Drive	Ⅰ	16	50	18	2300	<374	CCW
		Ⅱ	37	22
		Ⅲ	67	13
	Reverse	Ⅰ	15.6	50	18	2300	<374	CCW
		Ⅱ	36	22
		Ⅲ	65	13
