Brand Name : GALAXY
Model Number : GLDSJ-3
Certification : ISO,CE
Place of Origin : CHINA
MOQ : 1 set
Price : negotiable
Payment Terms : L/C, T/T
Supply Ability : 100 sets per month
Delivery Time : 30 days
Packaging Details : bulk
Type : Cable Conveyor
Power : AC380V
Rated force : 3.5KN
Speed : 7m/min
Motor power : 2*1.10kW
Dimensions : 980*500*440mm
Underground Cable Pulling Equipment Rated Force 3.5KN GLDSJ Cable Conveyor
Performance
Model | Cable diameter | Power | Rated force | Speed | Clamping force | Motor power | Dimensions | Weight |
mm | KN | m/min | kN | kW | mm | kgs | ||
DSJ-3 | 25~165 | AC380v | 3.5 | 7 | <2.7 | 2*1.10 | 980*500*440 | 166 |
DSJ-5 | 25~180 | AC380v | 5.5 | 7 | <2.7 | 2*1.10 | 980*500*440 | 180 |
DSJ-8B | 25~185 | AC380v | 8.5 | 7 | <2.7 | 2*1.50 | 1220*730*480 | 265 |
Description
This cable conveyor is used to string large diameter electric power cable and communication cable.
With bilateral track structure, there are rubber covered on the track, it won't damage the cable insulation
![]() |

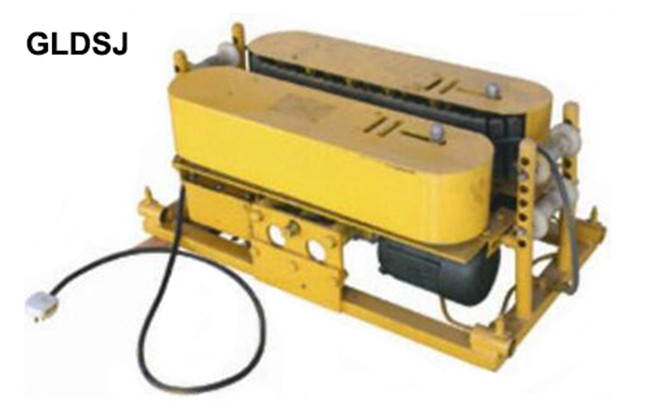

7m/Min Underground Cable Pulling Equipment Rated Force 3.5KN Cable Conveyor AC380V Images |
